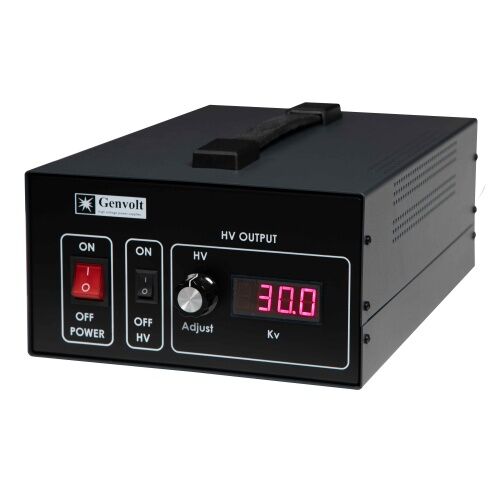

7000 Series Power Supply

The 7000 range of high-voltage power supplies are used primarily as laboratory power supplies. The power supply is equipped with a digital LED display, adjustable voltage range, highly stable output, and low ripple.

The unit is available in positive or negative polarity and one or two output connectors depending on customer requirements. Both AC and DC input units are supplied with 40kV HV output cables. AC input unit is also supplied with IEC power connector and cable, and DC input unit is supplied with a 24V 5-way XLR connector (female).

  • Electrospinning, Insulation Testing, Electrophoresis
  • Models From 1kV to 40kV
  • 30W,60W,100W Units
  • Small Footprint
  • Positive or Negative Polarity Available

Additional information

Input Voltage

24VDC, Universal 85 – 264VAC

Input Frequency

50Hz, 60Hz, DC

Output Power

30W, 60W, 100W

Polarity

Negative, Positive

Output Adjustable Range

0 to 100% Voltage

Voltage Ripple

< 0.1%

Load Regulation

0.01%

Line Regulation

0.03%

Stability

0.05

Efficiency

75%

Operating Temperature

-10°C, 0°C, 10°C, 15°C, 35°C, 40°C

Operating Humidity

0 to 90% non-condensing

Cooling Method

Air

Control

Local

Monitoring

Local

Protection

Arcing, Overload, Overvoltage, Short Circuit
