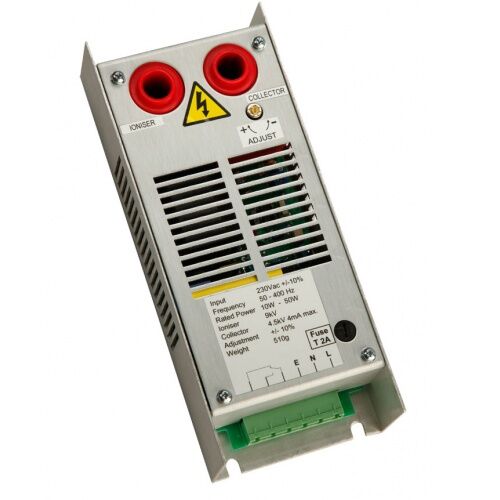

The AF01 range of power supplies is specifically designed for application in air and oil purification systems. They are available with either single or dual outputs, and with a wide range of output voltages. The power supplies are protected from overload, short circuit and sparks. They are able to be used off-load without any changes in output voltage.
With output power ranges of 20W, 30W, 40W and 50W these small form factor units take up very little space and can be easily installed and are perfect for applications requiring an air cleaning high voltage power supply.
They are available with either single or dual outputs, and with a wide range of output voltages. The power supplies are protected from overload, short circuit and sparks. They can be used off load without any changes in output voltage.
| Input Voltage | 120VAC, 230VAC |
|---|---|
| Input Frequency | 50 – 400Hz |
| Output Voltage DC | 7kV / 3.5kV to 12kV / 6kV |
| Output Power | 20W, 30W, 40W, 50W |
| Polarity | Positive or Negative |
| Output Adjustable Range | 90% to 110% Voltage |
| Voltage Ripple | < 0.3% |
| Load Regulation | ˂ 0.1% |
| Line Regulation | ˂ 0.1% |
| Operating Temperature | 0°C to 55°C |
| Operating Humidity | < 90% non-condensing |
| Cooling Method | Air |
| Control | Local |
| Monitoring | Local |
| Protection | Arcing & Short Circuit |
| Dimension | 80*40*200mm |
| Weight | 0.6kg |
| AF01 7/3.5 | Ionizer / Collector | 7kV / 3.5kV |
|---|---|---|
| AF01 8/4 | Ionizer / Collector | 8kV / 4kV |
| AF01 9/4.5 | Ionizer / Collector | 9kV / 4.5kV |
| AF01 10/5 | Ionizer / Collector | 10kV / 5kV |
| AF01 11/5.5 | Ionizer / Collector | 11kV / 5.5kV |
| AF01 12/6 | Ionizer / Collector | 12kV / 6kV |
| Legend | Definition | |
|---|---|---|
| L | Mains input | Live |
| N | Neutral | |
| E | Earth | |
| COM | Relay contacts | Common |
| NC | Normally closed | |
| NO | Normally open | |
| Legend | Definition |
|---|---|
| IONIZER | Full HV output |
| COLLECTOR | Half HV output |
For requirements other than those specified, please do not hesitate to contact the factory. Please note that design improvements may lead to specification changes.
Three voltage free relay contacts are available on the connector (pin1, 2 and 3). These may be used for status indication. Examples are shown below.
