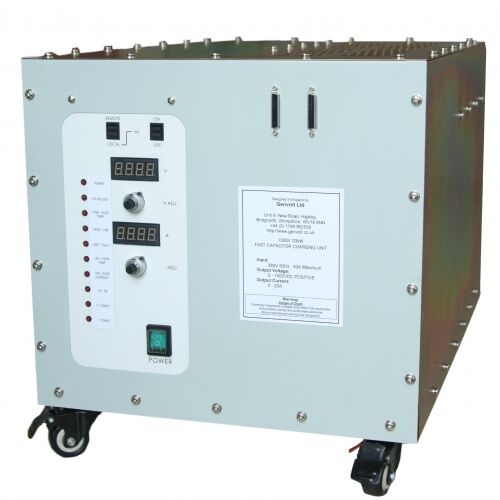

Callisto HV Power Supply

The Callisto HV Power Supply is designed for general purpose applications and for capacitor charging applications. This high power unit has an output power of 15kW and a peak of 30kW when capacitor charging.

The power supplies are powered from a three phase 380 to 440VAC mains supply. They use a rugged IGBT based inverter running in resonant mode, which achieves high efficiency and excellent ruggedness. They are available with output voltages of 1, 2, 5, 10, 20, 30, 40, 50 or 60kV. They will operate in constant voltage or constant current mode controllable from 0 to 100% of the maximum specified output. Each model has an output power of 15kW, 30kW peak is available when capacitor charging.

Additional information

Input Voltage

400VAC three phase

Input Frequency

50Hz, 60Hz

Output Voltage

10kV, 1kV, 20kV, 2kV, 30kV, 40kV, 50kV, 5kV, 60kV

Output Power

15KW, 30KW


Negative, Positive

Output Adjustable Range

0 to 100% Voltage

Load Regulation


Line Regulation


Power Factor




Operating Temperature

10°C, 15°C, 35°C, 40°C

Operating Humidity

0 to 90% non-condensing

Cooling Method

Forced Air


Local and Remote

Enquire about this product

Our expert team can help you with any questions you may have about this product. Complete the form for a call back or call us during office hours.
