Multi Conductor Cable

Consisting of multiple cores, the Genvolt range of multi conductor cable is suitable for a wide variety of high voltage uses. The cables have a dielectric material range of either Silicone, Polyethelene or Paper/Oil depending on the rated voltage and cable size required.

Our multi conductor cable can be ultised for data transmission, audio and sound systems, PA systems and actuator controls and other device communication applications.

With a large selection of cable sizes and multi conductor cores available our range features high voltage cable solutions that will suit a diverse array of demanding environmental conditions.

Rated Voltage Part Number No. of Conductors Conductor Size Semicon Diameter (mm) Dielectric Shield
DC (kV) AWG Insulation Material Diameter (mm) AWG (Equiv.) Coverage (%)
15 C2181-1 2 6 Silicone n/a Silicone 7.60 14 85
2 20 Silicone n/a Silicone 3.20
15 C2207 2 4 Silicone n/a Silicone 9.70 13 85
2 20 Silicone n/a Silicone 3.20
15 C2201 2 10 Silicone n/a Silicone 5.60 16 85
2 20 Silicone n/a Silicone 3.20
15 C2211-R1 2 8 Silicone n/a Silicone 6.50 15 85
2 20 Silicone n/a Silicone 3.20
15 C2217 2 12 Silicone 3.40 Silicone 6.00 15 85
2 20 Silicone n/a Silicone 3.20
15 C2183 3 8 Silicone n/a Silicone 6.50 15 85
15 C2249 9 20 Silicone n/a Silicone 3.20 n/a n/a
30 C2187 3 20 Silicone n/a Silicone 4.70 13 85
40 C2176 4 18 Silicone 2.30 Silicone 6.00 15 90
50 C2111 4 16 Silicone 2.50 Silicone 7.50 12 80
50 C2188 5 16 Silicone 2.50 Silicone 7.50 15 90
50 C2228 3 16 Silicone 2.50 Silicone 7.50 17 80
60 C2244 3 18 Polyethelene 2.30 Polyethelene 5.80 15 85
60 C2233 19 18 Polyethelene 2.30 Polyethelene 5.80 11 80
300 C2009-01 1 10 n/a 17.80 Paper/Oil 33.50 2 100
10 12 FEP
1 12 FEP Paper/Oil 9.20

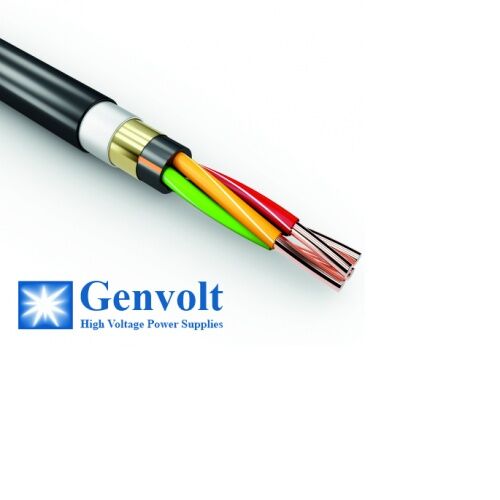

 Images are for illustration purposes only.
*All high voltage cable drawings, designs and specifications remain the property of Genvolt and must not be copied or distributed without our express authority.
