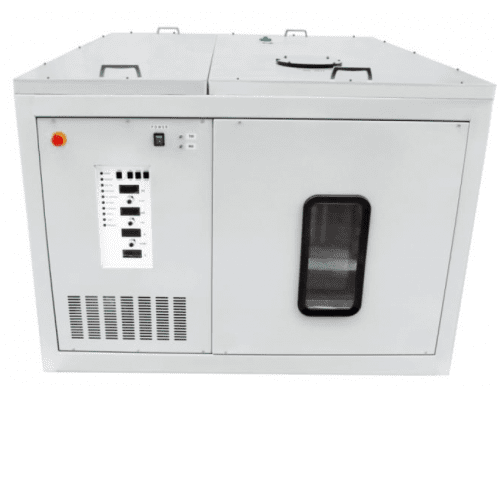

The Genvolt electron beam power supply range is suitable for 3D printing and additive manufacturing, laser metal deposition and electron beam welding. Consisting of high powered units, with power ranges available from 60kV up to 200kV. Both the DC filament and bias power supply are integrated within the mechanical build.
Current for the filament and bias voltages are measured at high potential, with the measurement sent via fibre optic connection to the control system.
Genvolt electron beam power supplies in corporate high power inverter technology as well as a patented rectification transformer with low stored energy and high reliability.
| Input Voltage | 360AC to 440VAC three phase + Neutral |
|---|---|
| Input Frequency | 50Hz to 60Hz |
| Output Voltage DC | 60kV to 150kV |
| Output Power | 5kW to 100kW |
| Polarity | Positive or Negative |
| Output Adjustable Range | 0 to 100% Voltage |
| Voltage Ripple | < 0.5% |
| Stability | < 0.2% |
| Operating Temperature | '-10°C to +40°C |
| Operating Humidity | < 90% non-condensing |
| Cooling Method | Water Cooled |
| Control | Local, Remote |
| Monitoring | Remote and Local |
| Protection | Overvoltage, Over-current, Overheat and Discharge detection |
Protection
Circuit protection
The units can adopt either air or water cooling technologies and comes with complete in-built protection against over voltage, over current, over heat and discharge detection. This enables the unit to perform continuously over extended periods.
Control ports

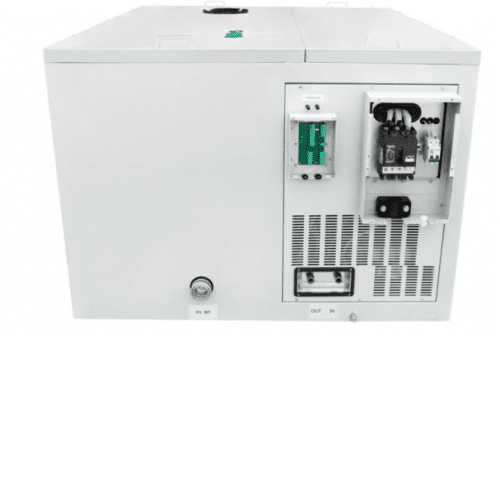

User interface connector and rear panel connections
There are five sets of wiring terminals on the rear panel of the power supply, which are the ports for remote control of the power supply.
JD0 and JD1 are digital ports.
JA0 and JA1 are analogue ports.
JP1 is the supporting power supply providing 24V for external use.
