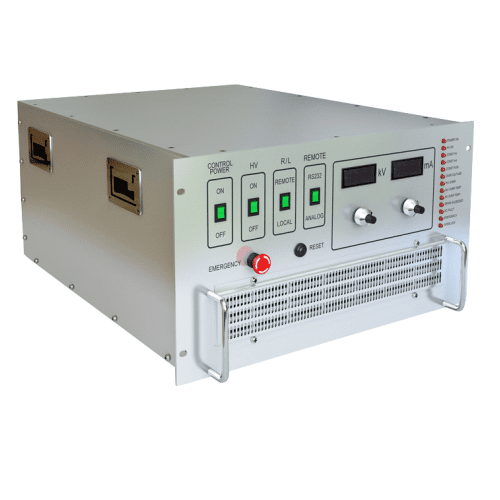

The Pleiades 6kW rack mounted HV Power Supply is a new generation of chassis power supply developed by Genvolt. The Pleiades 6kW is ideal for applications where precision and efficiency are paramount. This power supply has an integrated 6U (10.5″) standard chassis and offers an output voltage range from 1kV to 100kV.
There are 18 standard specifications as well as bespoke voltage and current settings which can be customized depending on customer requirements. Local control can be performed through the front panel which controls the local voltage, current and emergency system. Function, fault reset, full remote control, including analog control and RS232 remote control, is achieved through the integrated 50-pin socket on the rear panel.
| Input Voltage | 360 – 528VAC 3Phase or 208VAC, 3Phase |
|---|---|
| Input Frequency | 50Hz to 60Hz |
| Output Voltage DC | 1kV Up to 100kV |
| Output Power | Up to 6kW |
| Polarity | Positive or Negative |
| Output Adjustable Range | 0 to 100% Voltage |
| Voltage Ripple | 0. 1% |
| Load Regulation | 0. 1% |
| Line Regulation | 0. 1% |
| Power Factor | 0.92 |
| Efficiency | 90% |
| Operating Temperature | 0 to 40°C |
| Operating Humidity | < 90% non-condensing |
| Cooling Method | Air |
| Control | Local, Local and Remote, Remote |
| Monitoring | Local and Remote |
| Dimension | 483*266*573mm |
| Weight | 40kg to 50kg |
Both local and remote modes are available with remote control being via DB50 female D connector to the rear
