Silicone Cable

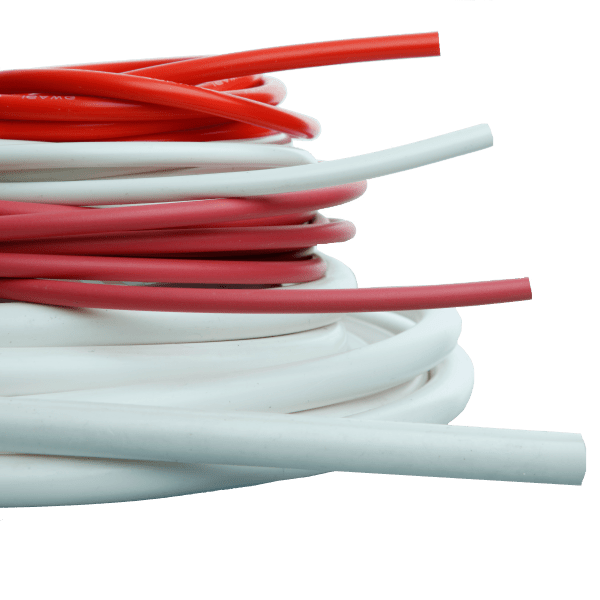

Genvolt stock and supply a variety of high voltage cable from 10kV to 50kV that are available as either XLHDPE Cable (Cross linked high-density polyethylene) or silicone cable. Our HDPE cables are lightweight with a good resistance to chemicals and have a high resistance to UV.

Genvolt AWM Appliance Wiring Material cables are suitable for internal wiring of CRT-based television, machine, electronic oven, copy machine, plant construction, tool-building etc.
Rating – These high voltage wires are approved by both UL and CSA standard for 10, 20, 30, 40 and 50kV. Flame retardant – 50kV (DC) at 105°C. These wires pass the vertical flame retardant test based on UL VW-1 and CSA FT1.Silicone cables have a high bend radius to allow for easy installation and a maximum temperature rating of up to 200°C. Their resistance to humidity, radiation, UV and corrosion makes them ideally suited for a wide variety in installations.

Silicone cables have a high bend radius to allow for easy installation and a maximum temperature rating of up to 200°C. Their resistance to humidity, radiation, UV and corrosion makes them ideally suited for a wide variety in installations.

Type Insulation material Voltage rating
(kV DC)
Conductor size  (AWG/mm²) Colour Temperature rating



Outside diameter
(mm)
Approvals and standards
TV10 XLHDPE 10  22 Stranded Red  105°C maximum 2mm UL Style 3239 VW-1 CSA-FT1
TV-20 XLHDPE 20  22 Stranded Red  105°C maximum 3mm UL Style 3239 (OO) VW-1 CSA-FT1
TV-30 XLHDPE 30  22 Stranded Red  105°C maximum 3.5mm UL Style 3239 (SS) VW-1 CSA-FT1
TV-40 XLHDPE 40  22 Stranded Red  105°C maximum 4mm  UL Style 3239 (PP) VW-1 CSA-FT1
TV-50 XLHDPE 50  22 Stranded Red  105°C maximum 5mm UL Style 339 VW-1 CSA-FT1
 HVC-S-40-16-R   Silicone rubber 40 16/1.31 Stranded Red  150°C maximum  5.5mm  UL Style 3239 VW-1
CSA Type TV-40
 HVC-S-40-16-W Silicone rubber  40 16/1.31 Stranded White  150°C maximum  5.5mm  UL Style 3239 VW-1
CSA Type TV-40
 HVC-S-60-16-R   Silicone rubber 60  14/2.08 Stranded Red  -60 to +200°C 11mm  –
 HVC-S-60-16-W  Silicone rubber 60  14/2.08 Stranded  White   -60 to +200°C 11mm  –
