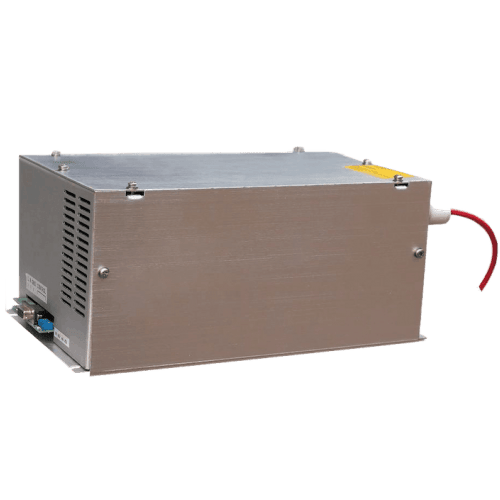

CCL1000 Capacitor Charging Power Supply

Genvolt’s CCL series capacitor charging power supply is a high voltage power supply with high reliability, high performance and cost effective power supply specially designed by Genvolt for capacitor charging applications. The rated output power is 500W with a peak output power of 1000W.

This high voltage capacitor charger has a single output and is available in output voltages of 5kV, 10kV, 20kV, 30kV and 40kV. Both positive and negative output polarity (with respect to ground) are available. Please specify which version you require at the time of ordering.
Features
Optional remote control output voltage or local control.
Potentiometer adjustment.
Charge and discharge frequency can be customized.
Repeatability is better than 0.5%.
Output voltage and current can be continuously adjusted.
Output polarity can be specified by user.
Small size, lightweight, stable output, high performance (85%).

Additional information

Input Voltage

230VAC

Input Frequency

50Hz, 60Hz

Output Voltage

10kV, 20kV, 30kV, 40kV, 50kV, 5kV, 60kV

Output Power

1000W

Polarity

Negative, Positive

Output Adjustable Range

0 to 100% Voltage

Load Regulation

0.5%

Line Regulation

0.5

Stability

1

Efficiency

85%

Operating Temperature

-10°C, 0°C, 10°C, 15°C, 35°C, 40°C, 50°C

Cooling Method

Air

Control

Local and Remote

Monitoring

Local and Remote

Enquire about this product

Our expert team can help you with any questions you may have about this product. Complete the form for a call back or call us during office hours.
