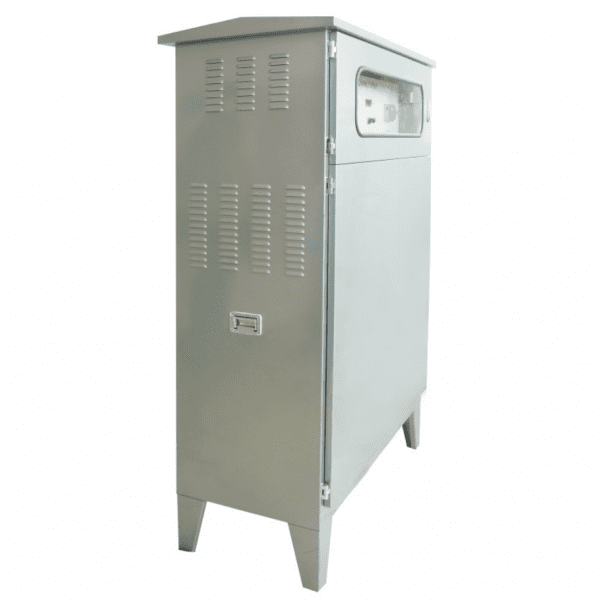

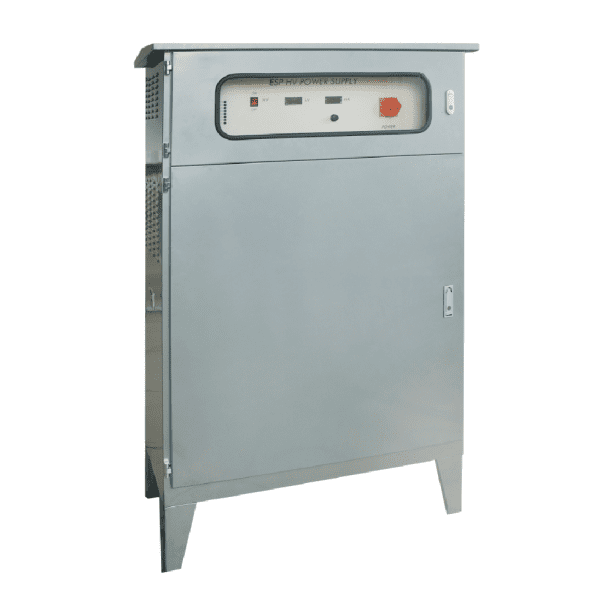

ESP01 Series

The Genvolt designed ESP01 Series High Voltage power supplies produce output power from 4kW to 12kW and output voltage from 10kV to 60kV.

The ESP01 uses high-frequency inverter and control circuits providing high efficiency and high tolerance to the noise generated by electrical discharges.

The ESP01 Series can be applied in air purification systems such as in chemical industries, printing factories and etc.

Additional information

Input Voltage

400VAC three phase

Input Frequency

50Hz, 60Hz

Output Voltage

10kV to 60kV

Output Power

4KW, 6KW, 6.4KW, 10KW, 12KW

Polarity

Negative, Positive

Load Regulation

2.5%

Line Regulation

2%

Operating Temperature

-10°C, 0°C, 10°C, 15°C, 35°C, 40°C

Operating Humidity

0 to 90% non-condensing

Protection

Arcing, Overload, Short Circuit

Safety

  • This power supply contains hazardous voltages and stored energy. Contact with the output may result in fatal injury. It should only be used and maintained by trained personnel.
  • The area where the power supply is to be used should be kept clean and dry.
  • Keep a safe distance from the output connector and any items connected to it.
  • Ensure that a secure connection is made between the Earth side of the load and the green and yellow Earth lead.
