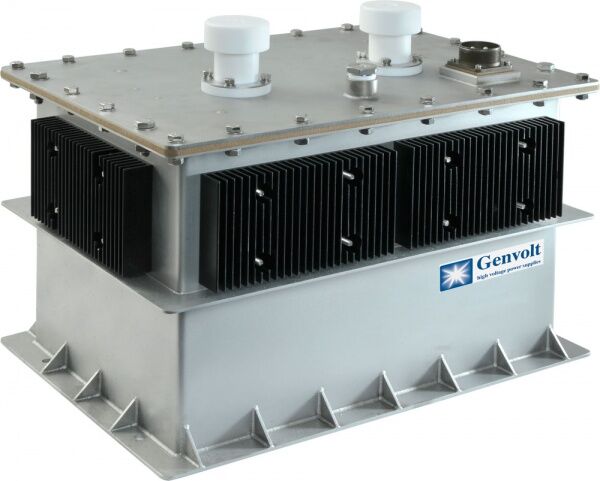

20kW High Voltage Transformer rectifier outputting from 10-50 kilovolts and with a Direct Current (DC) power rating of 20 kilowatt (kW).
Oil sealed transformer that is particularly useful in travelling wave tube (TWT) applications such as those used by microwave receivers.
| Input Voltage | 450VDC peak to peak |
|---|---|
| Output Voltage DC | 33kV |
| Output Power | 20KW |
| Polarity | Negative |
| Operating Temperature | '-20°C to +55°C |
| Operating Humidity | 95% non-condensing at 40°C |
| Cooling Method | Oil Cooled |
| Control | Remote |
| Dimension | 365*525*407mm |
| Weight | Up to 80kg |
Our expert team can help you with any questions you may have about this product. Complete the form for a call back or call us during office hours.
