LAS Series of high voltage power supplies are designed to satisfy high performance standards in a minimum of space. The circuitry includes a power factor corrector, a high frequency inverter with proprietary control which provides full protections against over voltage, over current, and in extreme transient and arcing environments. These full featured supplies are available in a wide range of outputs
Typical Application
Features
Embedded Microcontroller control. Front panel digital encoders provide high resolution local adjustment of voltage and current program. Integral RS-232, USB and optional ethernet communications provide remote control program and monitor. Arc Quench. The HV output is inhibited for a short period after each load arc to help extinguish the arc. Arc Count. Internal circuitry constantly senses and integrates arcs that occur over a given time. In the event a system or load arcing problem develops and exceeds factory- set parameters, the power supply will cycle off in an attempt to clear the fault and then automatically restart after a pre- set “off dwell time”. Pulse-Width Modulation. Off-the-line pulse-width modulation provides high efficiency and a reduced parts count for improved reliability.
Voltage and Current Control Mode, Interlock Open/Closed, High Voltage Inhibit, Overcurrent and Overvoltage, Arc, Regulation Error, Overtemperature, Over Power (optional).
Models available from 1kV to 160kV. Each model is available in positive or negative.

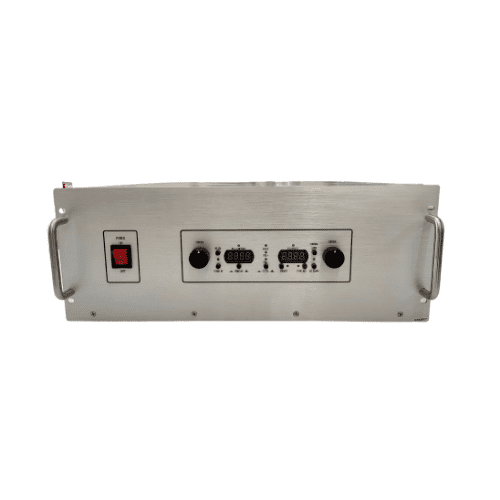

Voltage and current are continuously adjustable by rotary encoders, stand by button, high voltage ON/OFF switch/indicator.
| Input Voltage | 100VAC to 230VAC for up to 600W and 230VAC for > 600W |
|---|---|
| Input Frequency | 50Hz, 60Hz |
| Output Voltage DC | 1kV to 160kV |
| Output Power | 300W, 600W, 1000W, 1500W |
| Polarity | Positive or Negative |
| Output Adjustable Range | 0 to 100% Voltage |
| Voltage Ripple | 0. 1% |
| Load Regulation | 0.05% |
| Line Regulation | 0.05% |
| Control | Local, Local and Remote, Remote |
| Monitoring | Local and Remote |
| Protection | Overload, Arcing & Short Circuit |
| Dimension | 1U, 2U and 4U |
| Weight | 4kg to 47kg |
