The Pegasus P1800 Range rack power supply is a general purpose DC High Voltage Power Supply suitable for laboratory and industrial use. Standard remote control is by analogue signals. Should other controls be preferred please discuss this with our technical staff.
Available in a standard 19-inch rack. Reduced weight and ease of serviceability is ensured, as the supplies are air insulated below 30kV.
The rack power supply can be provided with either a negative or positive polarity with an option of grid and filament outputs being available, please contact us for more information when requesting a quote or placing an order.
| Input Voltage | 198 – 264VAC |
|---|---|
| Input Frequency | 45Hz to 60Hz |
| Output Voltage DC | 10kV Up to 120kV |
| Output Power | 1800W |
| Polarity | Positive or Negative |
| Output Adjustable Range | 0 to 100% Voltage |
| Voltage Ripple | 0. 1% |
| Load Regulation | 0.01% |
| Line Regulation | 0.01% |
| Power Factor | > 0.95 |
| Operating Temperature | 0 to 35°C |
| Operating Humidity | < 95% non-condensing |
| Cooling Method | Air |
| Control | Local, Local and Remote, Remote |
| Monitoring | Local and Remote |
| Protection | Arcing, Overload, Short Circuit |

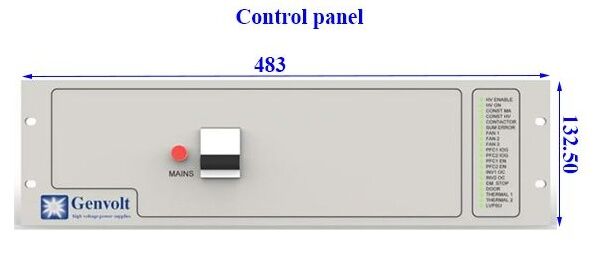

| Dimension | 483*132.50*579.80mm |
| Weight | up to 35kg |

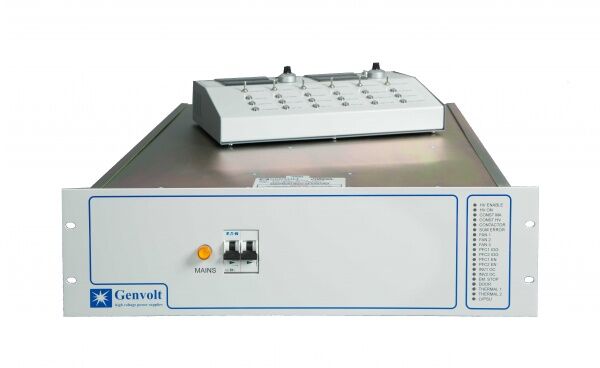

The Pegasus P1800 power supplies can be controlled by connecting an external control interface to the Harting connector or the D-Sub connector. Genvolt can also supply specially-designed control panels for customer requirements. Please see more information in the data sheet.
Our expert team can help you with any questions you may have about this product. Complete the form for a call back or call us during office hours.
Genvolt Engineers have also offered customised technical support to hundreds of customers, who represent countless agencies, research departments and global organisations for multiple products across many applications. The people that work with us know they can trust our vision, products and services as we build strong partnerships.
Our vision is to provide customers, of high voltage technologies, with a high level of support and industry-leading expertise so as to deliver the best solution to their requirements.
Complete the form below, and our team will get back to you as soon as possible.
