The Sirius 3 is part of our range of 19 inch rack mounted HV Power Supply units that are suitable for a wide scope of applications. Running at 1800W (1.8kW) and with an output voltage range of 0-60kV the Sirius is a versatile power supply.

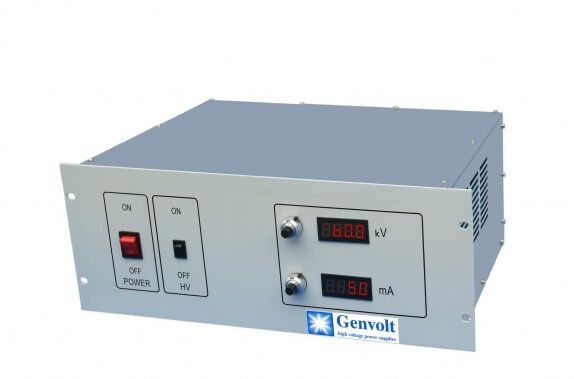

The unit has the output current and voltage displayed on two digital meters on the front panel.
Output control is achieved using two multi-turn potentiometers and a HV ON/OFF switch, also mounted on the front panel.
The unit is supplied in a 19″ rack mounted housing that is suitable for standard cabinets.
Default control is via the local controls on the front of the power supply, however, the power supply can also operate in remote mode via RS232 or RS485.
The monitoring system uses intelligent PC based software based on VB visual interface. The entire monitoring system can realise operational control of the Sirius range of power supplies. Please contact us to discuss your requirements.
| Input Voltage | 220VAC±10% |
|---|---|
| Input Frequency | 50Hz to 60Hz |
| Output Voltage DC | 60kV |
| Output Power | 1800W |
| Polarity | Positive or Negative |
| Output Adjustable Range | Near 0V to 100% Voltage |
| Load Regulation | < 0.5% |
| Line Regulation | < 0.5% |
| Operating Temperature | '-10°C to +40°C |
| Operating Humidity | < 90% non-condensing |
| Cooling Method | Air |
| Control | Local, Local and Remote, Remote |
| Monitoring | Local and Remote |
| Protection | Arcing, Over-Current, Short Circuit |
| Dimension | 483*177*433.6mm |
| Weight | 10kg |

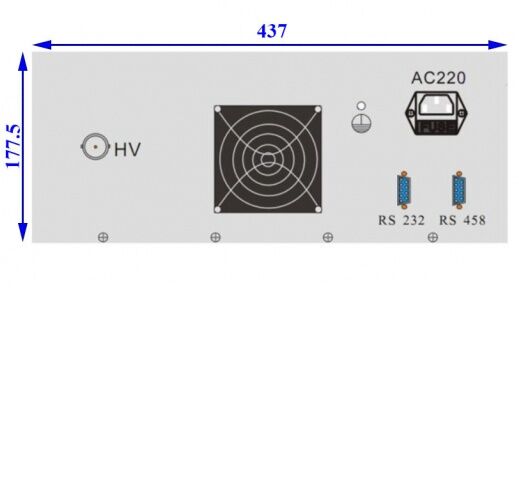

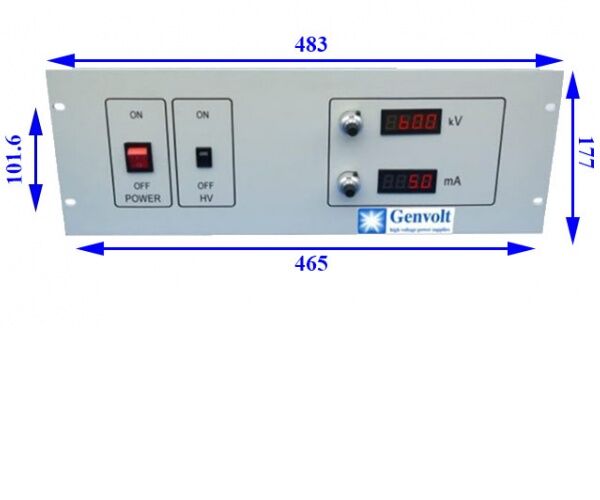

The front panel allows adjusting the output voltage and current by two 10 turns potentiometers. There are also two D connectors on the rear panel with RS232 and RS458 serial communication.
| Ambient temperature | -10 to 40°C |
|---|---|
| Relative humidity | Less than 90% non condensing |
See datasheet.
Each power supply has been soak tested for no less than 48 hours at full load. Severe flash tests are also administered.
This power supply contains hazardous voltages and stored energy. Contact with the output may result in fatal injury. It should only be used and maintained by trained personnel.
