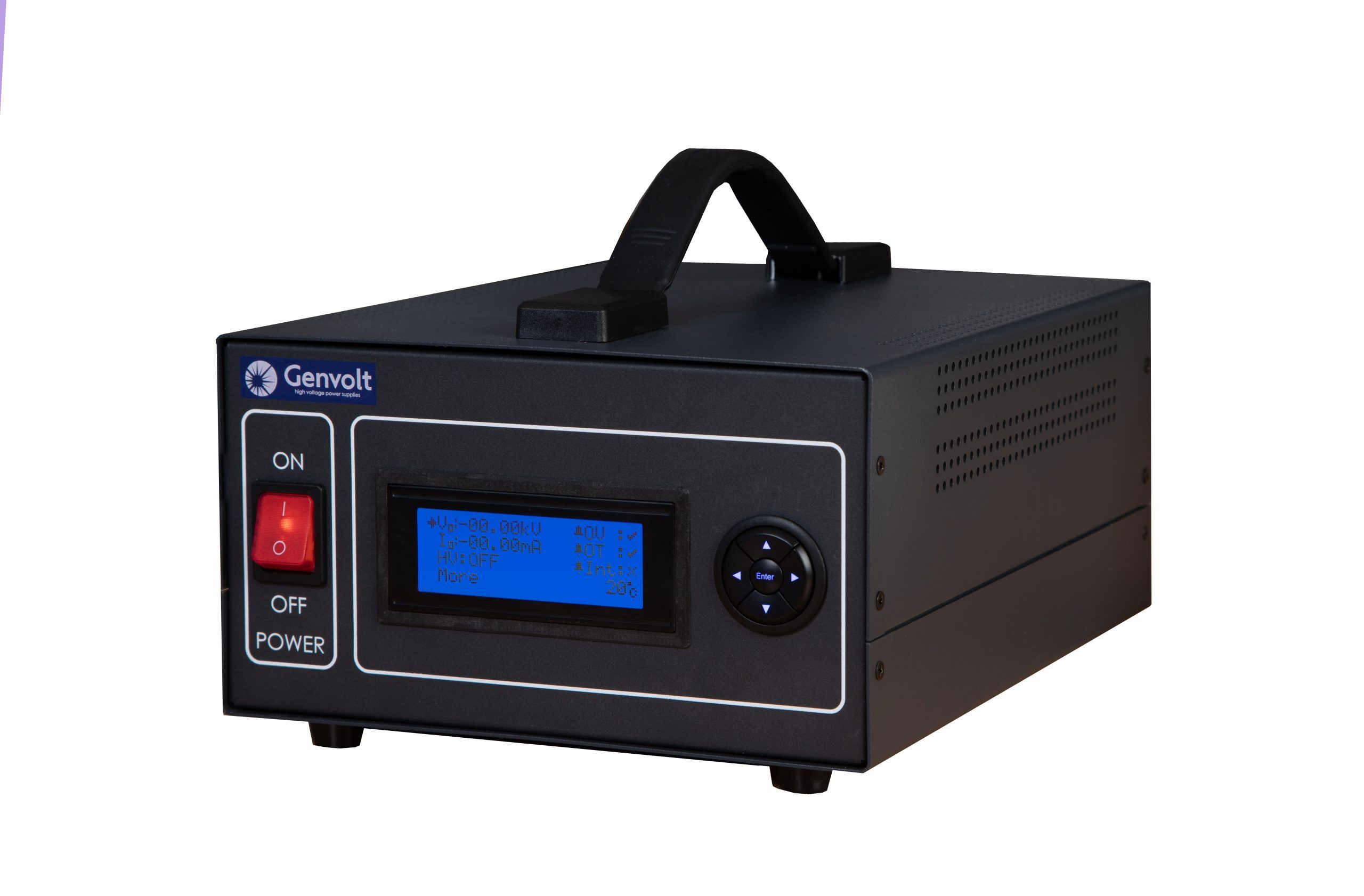

The Smart Control 7000 range of high voltage power supplies is primarily designed for laboratory applications. Equipped with the Genvolt Smart Controller, this power supply features an LCD screen display and a navigation keypad for seamless control.

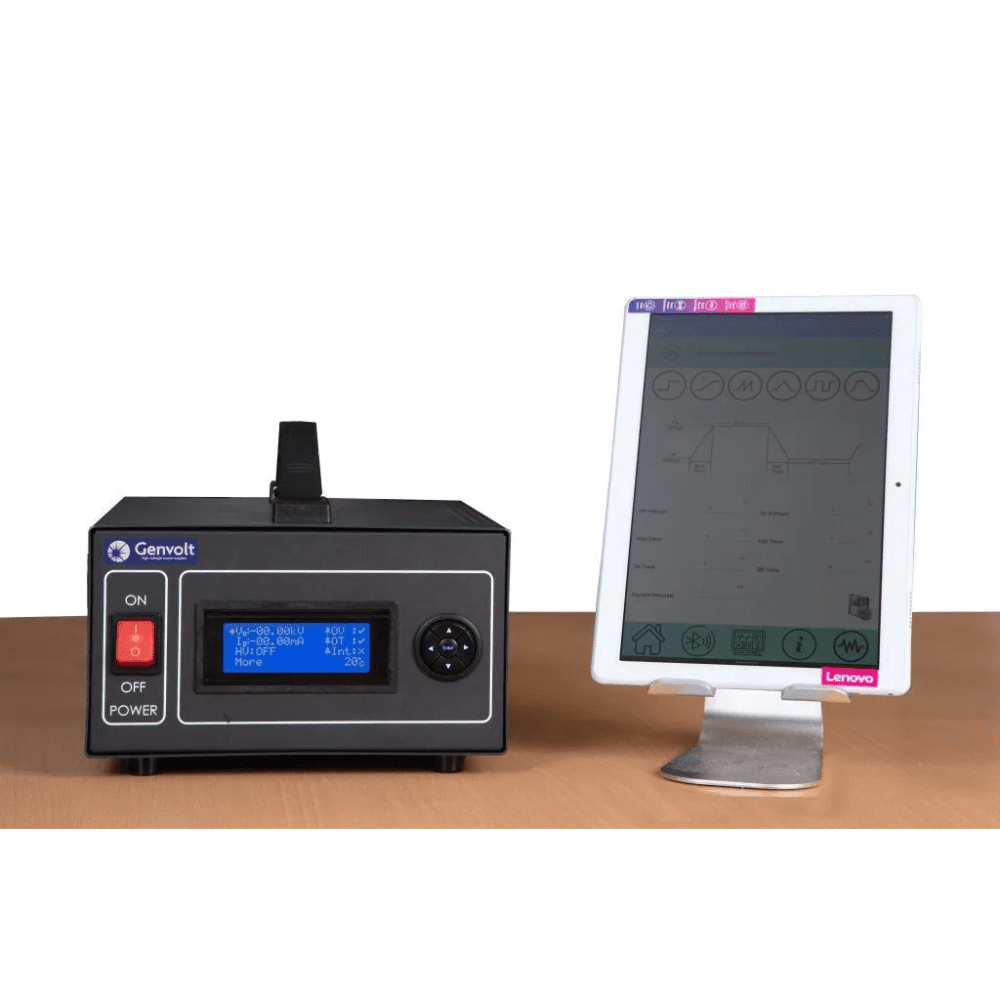

Additionally, it offers RS485/USB and Bluetooth remote control and monitoring capabilities. The unit provides an adjustable voltage range, adjustable current range, configurable output waveform, highly stable output, and low ripple.

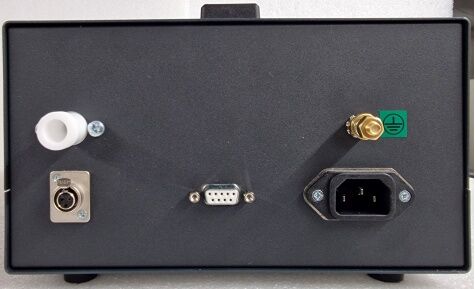

The power supply is available in both positive and negative polarity configurations, with one or two output connectors depending on customer requirements. It also comes in two versions: one with an AC main input voltage (IEC power connector) and another with a 24V DC input voltage (XLR connector).
| Input Voltage | 24VDC or 85 – 265VAC |
|---|---|
| Input Frequency | 50Hz to 60Hz in AC |
| Output Voltage DC | Up to 40kV |
| Output Power | 30W, 60W, 100W |
| Polarity | Positive or Negative |
| Output Adjustable Range | 0V to 100% Voltage |
| Voltage Ripple | Λ 0.35% |
| Load Regulation | Λ 0.01% |
| Line Regulation | < 0.3% |
| Stability | Λ 0.05% |
| Efficiency | Λ 75% |
| Operating Temperature | '- 10Β°C to 40Β°C |
| Operating Humidity | 0 to 90% non-condensing |
| Cooling Method | Air |
| Control | Local, Local and Remote, Remote |
| Monitoring | Local and Remote |
| Protection | Overvoltage, Overload, Arcing & Short Circuit |
| Dimension | 220*120*320mm |
| Weight | Up to 3.92kg |
