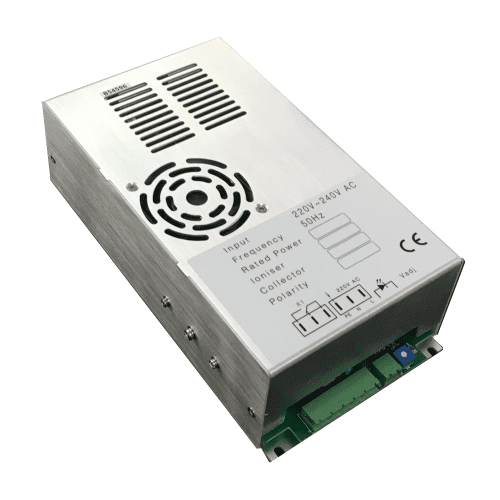

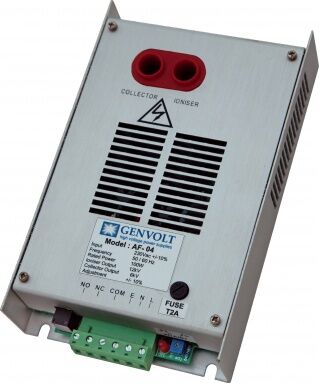

The AF04Β High Voltage ModuleΒ is the result of Genvolt’sΒ high voltage power supplyΒ research for air and oil purification. With 100W output power, it has a wide range of output voltages to select from. Both single or dual outputs are available.
This electrostatic precipitator power supply is smaller than an A5 piece of paper and is of a lightweight construction, weighing in at just 600g.
The power supplies are protected from overload, short circuit and sparks. They are able to be used off-load without any changes in output voltage
| Input Voltage | 120VAC, 230VAC |
|---|---|
| Input Frequency | 50Hz to 60Hz |
| Output Voltage DC | 4kV / 8kV to 6kV / 12kV |
| Output Power | 100W |
| Polarity | Positive or Negative |
| Output Adjustable Range | 90% to 110% Voltage |
| Voltage Ripple | < 0.3% |
| Load Regulation | Λ 0.1% |
| Line Regulation | Λ 0.1% |
| Operating Temperature | 0 to 55β |
| Operating Humidity | < 90% non-condensing |
| Cooling Method | Air |
| Control | Local |
| Monitoring | Local |
| Protection | Arcing & Short Circuit |

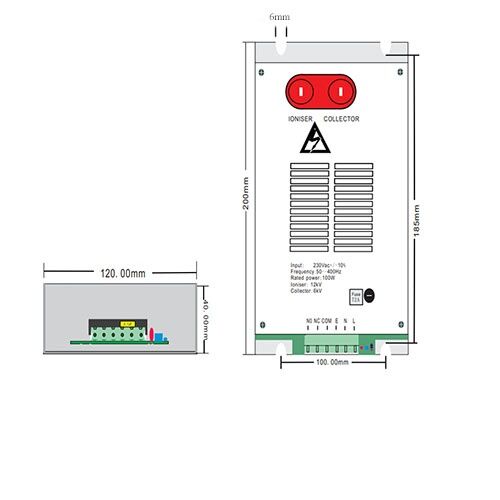

| Dimension | 120*40*200mm |
| Weight | 0.6kg |
| AF04 4/8kV | Collector/lonizer | 4kV/8kV |
| AF04 4.5/9kV | Collector/lonizer | 4.5kV/9kV |
| AF04 5/10kV | Collector/ lonizer | 5kV/10kV |
| AF04 5.5/11kV | Collector/ lonizer | 5.5kV/11kV |
| AF04 6/12kV | Collector/ lonizer | 6 kV/12kV |
| Legend | Definition | |
|---|---|---|
| L | Mains input | Live |
| N | Neutral | |
| E | Earth | |
| COM | Relay contacts | Common |
| NC | Normally closed | |
| NO | Normally open | |
| Legend | Definition |
|---|---|
| IONIZER | Full HV output |
| COLLECTOR | Half HV output |
For requirements other than those specified, please do not hesitate to contact the factory. Please note that design improvements may lead to specification changes.
Three voltage free relay contacts are available on the connector (pin1, 2 and 3). These may be used for status indication. Examples are shown below.
