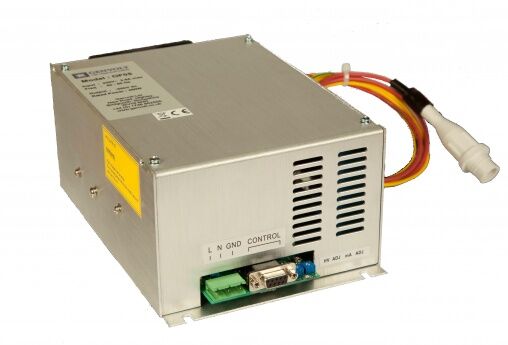

The AF05/OF05Β adjustable power supplyΒ is suitable for capacitor charging although its primary application is for air or oil fume purification. The AF05/OF05 high voltage power supply is also useful with other general-purpose applications and has a range of 10kV, 15kV and 20kV with a power range of 150W, 300W and 450W. The unit is a highly compact and efficient mains powered power supply.
The AF05/OF05 is a highly compact and efficient, mains powered high voltage power supply. The primary application is for air or oil fume purification. However, it is also suitable for capacitor charging and other general purpose application.
TheΒ adjustable power supplyΒ has a precise, stable and adjustable output voltage and current controlled by adjusting the potentiometer at the front panel. It is safe and reliable, with a high tolerance to the noise generated by electrical discharges and comes with spark protection that will switch off the output momentarily when the power supply experiences a spark on load.
With its short circuit protection and over-current protection, the Genvolt AF05/OF05 will keep the output current at the same set value in the event of an output short circuit or an output over-current.
The output voltage and current can be adjusted by the two potentiometers located next to the 9-way D type connector. For reliability and control the power supplies are tested with no load, short circuit load and sparking. They are also soak tested for no less than 48 hours at full load, ensuring that our exacting quality requirements and standards are met at all times.
| Input Voltage | 230VAC |
|---|---|
| Input Frequency | 50Hz to 60Hz |
| Output Voltage DC | 10kV, 15kV and 20kV |
| Output Power | 150W, 300W, 450W |
| Polarity | Positive or Negative |
| Output Adjustable Range | 80% to 100% Voltage |
| Load Regulation | Λ 1% |
| Line Regulation | Λ 1% |
| Operating Temperature | '-10Β°C to +50Β°C |
| Operating Humidity | < 90% non-condensing |
| Cooling Method | Air |
| Control | Local, Local and Remote, Remote |
| Monitoring | Local and Remote |
| Protection | Arcing, Over-Current, Short Circuit |
| Dimension | 150*95*220mm |
| Weight | 1kg to 1.6kg |
The power supply can be controlled by connecting to a 9-way D-type female connector at the rear.
The output voltage and current can be adjusted by the two potentiometers next to the 9 way D type connector. By winding both potentiometers clockwise increases the output. Details about the 9 way D type female connector in default settings:
| 1 | DGND | Digital ground. |
| 2 | FAULTY/FUNCTIONAL | OC output; OPEN=SPARK or FAULTY or STOP WORKING, CLOSE= FUNCTIONAL. |
| 3 | VDEM | To be defined. |
| 4 | GND | Analogue ground. |
| 5 | VFBK | Voltage feedback 0 to 5V=0 to maximum voltage. |
| 6 | L/R MODE | To be defined. |
| 7 | HV INHIBIT | 0V or FLOATING=ON, 12V=OFF. |
| 8 | IDEM | To be defined. |
| 9 | IFBK | 0 to 5V = 0 to maximum current. |
Remote control is also available for AF05. For further information, please contact the factory.
Each power supply has been tested with no load, short-circuit load and sparking. They have also been soak tested for no less than 48 hours at full load.
For requirements other than those specified, please do not hesitate to contact us.
