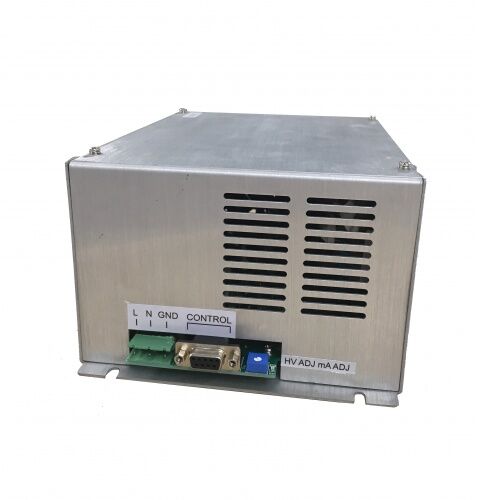

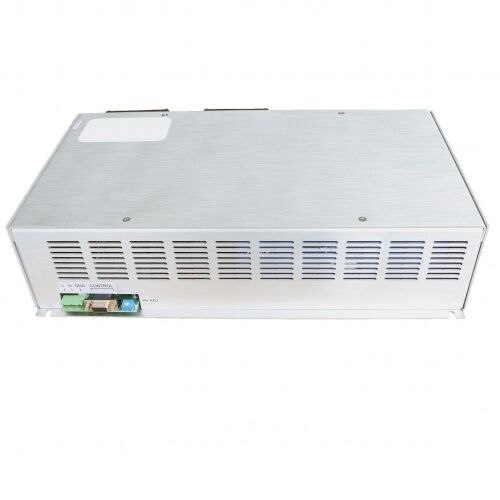

The AF06 Range is a highly compact and efficient, mains powered ESP Power Supply (Electrostatic Precipitator). The primary application for this high voltage power supply is for air purification or oil purification by removal of fumes.
The AF06 high-voltage power supply has a precise, stable and adjustable output voltage and output current. It is safe and reliable, with a high tolerance to the noise generated by electrical discharges.
The power supplies are designed as single output by default. Dual-output power supplies are also available upon customer request.
Being versatile, it is also suitable for other general-purpose applications such as;
| Input Voltage | 230VAC |
|---|---|
| Input Frequency | 50Hz to 60Hz |
| Output Voltage DC | 10kV to 60kV |
| Output Power | 600W, 800W, 1000W |
| Polarity | Positive or Negative |
| Output Adjustable Range | 80% to 100% Voltage |
| Voltage Ripple | ˂ 1% |
| Load Regulation | ˂ 0.5% |
| Line Regulation | ˂ 0.5% |
| Operating Temperature | '-10°C to +50°C |
| Cooling Method | Air |
| Control | Local, Local and Remote, Remote |
| Monitoring | Local and Remote |
| Protection | Arcing, Over-Current, Short Circuit |
| Weight | Up to 5kg |

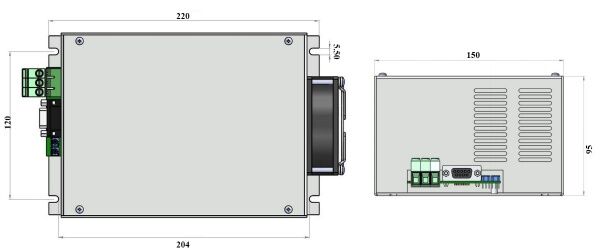

The power supply can be controlled by connecting to a 9-way D-type female connector or a 10-way IDC connector at the rear.
This power supply contains hazardous voltages and stored energy. Contact with the output may result in fatal injury. It should only be used and maintained by trained personnel.
| 1 | DGND | Digital ground, isolated from Pin 4 GND. |
| 2 | SPARK | Opto-coupler output for spark detection: OPEN and then CLOSE within 1s = SPARK; OPEN = FAULTY or STOP WORKING; CLOSE = FUNCTIONAL. |
| 3 | VDEM | To be defined. |
| 4 | GND | Analogue ground. |
| 5 | VFBK | Regarding Pin 4 GND: voltage feedback 0 – 5V = 0 to maximum voltage e.g. 4V = 24kV and 5V = 30kV (for 30kV 1kW power supplies). |
| 6 | L/R MODE* | To be defined. |
| 7 | HV INHIBIT | Regarding Pin 1 DGND: 0V or FLOATING = HV ON; +12V = HV OFF. |
| 8 | IDEM | To be defined. |
| 9 | IFBK | Regarding Pin 4 GND: 0 – 5V = 0 – maximum current e.g. 4V = 26.64mA and 5V = 33.3mA (for 30kV 1kW power supplies). |

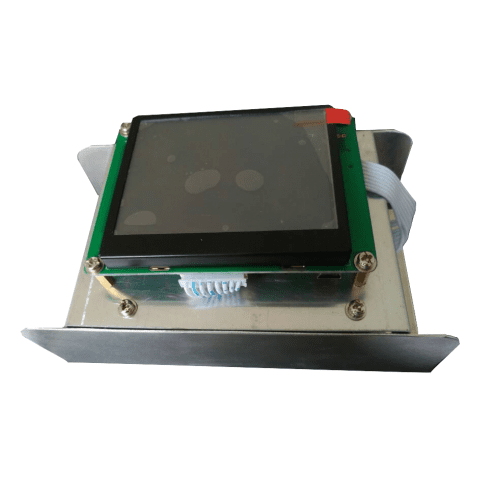

Remote control is also available for AF06. On DB9 connector:
| 3 | VDEM | Voltage demand. Regarding Pin 4 GND: 0 – 5V = 0 to maximum voltage e.g. 4V = 24kV and 5V = 30kV (for 30kV 1kW power supplies) Please note that AF06 Range is not adjustable from 0kV. |
| 6 | L/R MODE* | Regarding Pin 1 DGND: when applying +12VDC to this pin, the power supply is in remote control mode. |
| 8 | IDEM | Current demand. Regarding Pin 4 GND: 0 – 5V = 0 – maximum current. |
*Local control mode is the default setting for AF06 power supplies.
Please specify when ordering.
| 1 | VFBK | Regarding Pin 3 GND: voltage feedback 0 – 5V = 0 to maximum voltage e.g. 4V = 24kV and 5V = 30kV (for 30kV 1kW power supplies). |
| 2 | IFBK | Regarding Pin 3 GND: 0 – 5V = 0 – maximum current e.g. 4V = 26.64mA and 5V = 33.3mA (for 30kV 1kW power supplies). |
| 3 | GND | Analogue ground. |
| 4 | IDEM | Current demand. Regarding Pin 3 GND: 0 – 5V = 0 – maximum current. |
| 5 | VDEM | Voltage demand. Regarding Pin 3 GND: 0 – 5V = 0 to maximum voltage e.g. 4V = 24kV and 5V = 30kV (for 30kV 1kW power supplies) Please note that AF06 Range is not adjustable from 0kV. |
| 6 | HV INHIBIT | Regarding Pin 9 DGND: 0V or FLOATING = HV ON; +12V = HV OFF. |
| 7 | SPK/FAULT | OPEN and then CLOSE within 1s = SPARK; OPEN = FAULTY or STOP WORKING; CLOSE = FUNCTIONAL. |
| 8 | L/R MODE | Regarding Pin 9 DGND: when apply +12VDC to this pin, the power supply is in remote control mode. |
| 9 | DGND | Digital ground, isolated from Pin 4 GND. |
| 10 | VDC FAN | Regarding Pin 3 GND: providing an optional +12VDC for customer use. This is provided by the internal fan power supply. |
*Please specify the connector type for control interface (DB9 or
IC10) when ordering.
| Legend | Definition | |
|---|---|---|
| L | Mains input | Live |
| N | Neutral | |
| E | Earth | |
