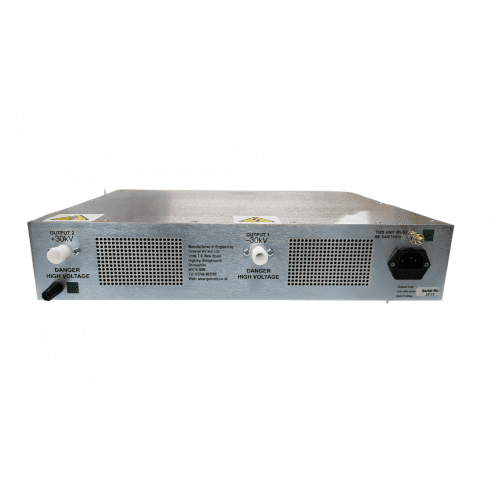

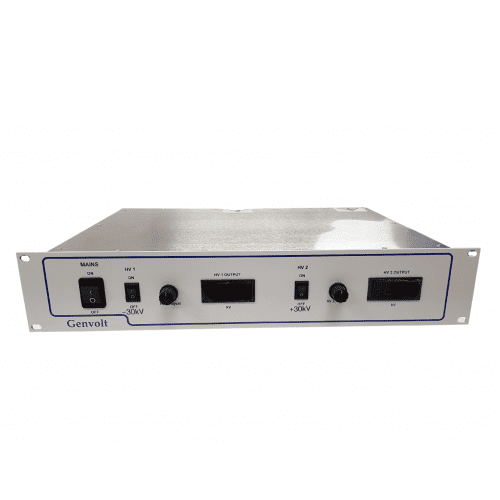

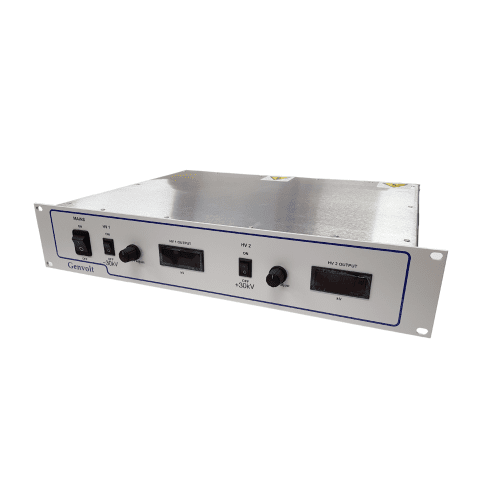

The Genvolt 7000D dual output high voltage power supply has been designed to fulfil the requirement of users that require two independent output voltage from a single unit, thus giving extreme flexibility in the units application portfolio.
The units can be configured with either two positive outputs, two negative outputs or combination of positive and negative, the unit has individual output control giving the user a flexible and definite control over each of the voltages.
| Input Voltage | 24VDC or 85 – 265VAC |
|---|---|
| Input Frequency | 50Hz to 60Hz in AC |
| Output Voltage DC | Up to 35kV |
| Output Power | 30W |
| Polarity | Negative, Positive |
| Output Adjustable Range | 0 to 100% Voltage |
| Voltage Ripple | < 0.3% |
| Load Regulation | Λ 0.01% |
| Line Regulation | < 0.3% |
| Stability | Λ 0.05% |
| Efficiency | Λ 70% |
| Operating Temperature | 0Β°C to 40Β°C |
| Operating Humidity | 0 to 90% non-condensing |
| Cooling Method | Air |
| Control | Local, Local and Remote, Remote |
| Monitoring | Local |
| Protection | Arcing, Overload, Overvoltage, Short Circuit |
| Dimension | Front: 483mm x 88mm Cabinet: 436mm x 346mm x 88mm |
| Weight | DC Inp: 4.45kg AC Inp: 6.05kg |
