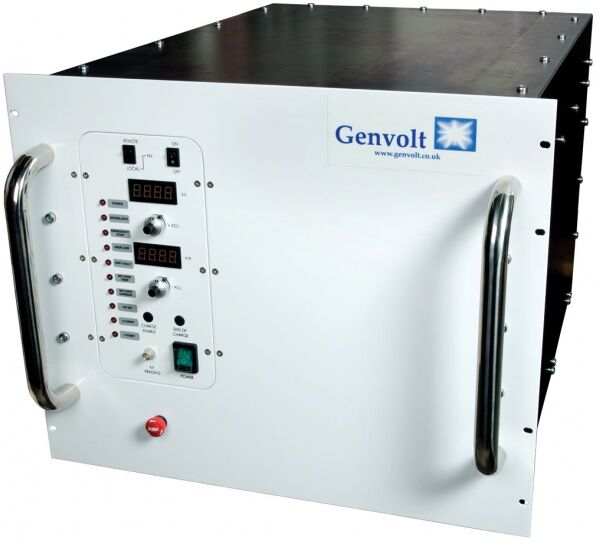

The Rhea range high voltage capacitor power supply is available as either a 20kW power supply or a more powerful 30kW power supply. It uses a rugged IGBT based inverter running in resonant mode to achieve high efficiency and excellent ruggedness.
It is designed to run, either from a high DC voltage input (typically 550V), or from UK/EU 3 phase power supply. Convenience if offered by way of either positive or negative polarity, water cooling and with dimensions suitable for a 19-inch subrack.
| Input Voltage | 550VDC or 380VAC, 415VAC & 440VAC 3Ph |
|---|---|
| Input Frequency | 50Hz to 60Hz in AC |
| Output Voltage DC | 500V, 1kV, 1.5kV and 2kV |
| Output Power | 20kW and 30kW |
| Polarity | Positive or Negative |
| Output Adjustable Range | 0 to 100% Voltage |
| Voltage Ripple | 0. 1% |
| Load Regulation | 0.01% |
| Line Regulation | 0. 1% |
| Stability | 0.1% |
| Power Factor | > 0.9 |
| Efficiency | > 90% |
| Operating Temperature | 0 to 40°C |
| Operating Humidity | < 90% non-condensing |
| Cooling Method | Water Cooled |
| Control | Local, Local and Remote, Remote |
| Monitoring | Local and Remote |
| Dimension | 483*400*700mm |
| Weight | 70kg |
