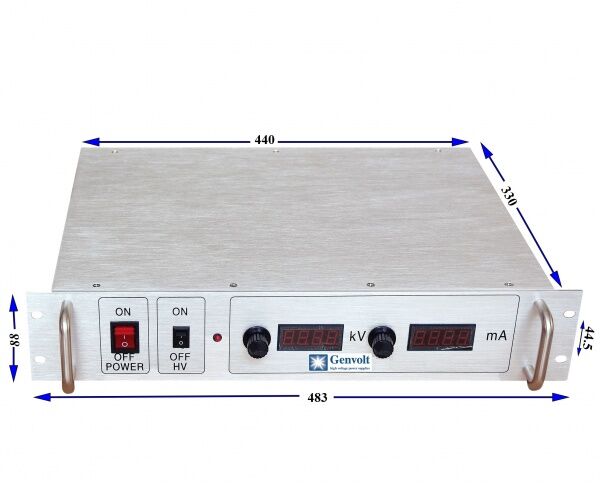

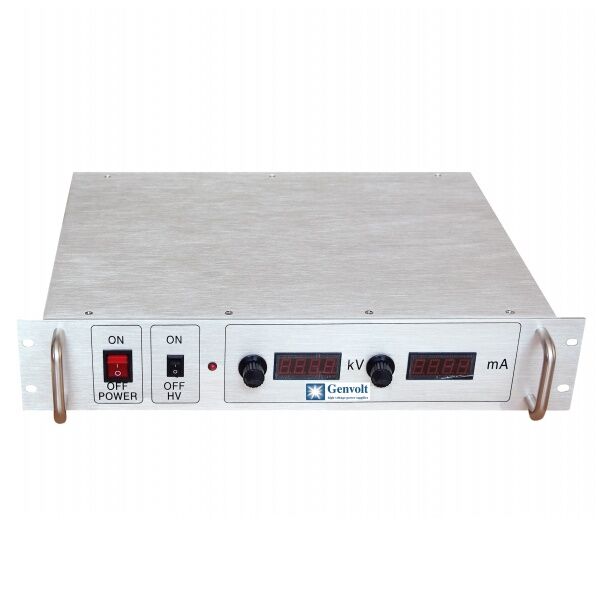

On the Sirius 1 HV Power Supply, the output current and voltage are displayed on digital meters mounted on the front panel. Output control is achieved using two multi-turn potentiometers and an HV on / off switch, also mounted on the front panel.
The unit is available as either 30W, 60W or 100W form and with an output voltage rating of up to 60kV.
The unit runs from a mains single phase supply and comes supplied in a standard 19-inch housing, allowing for easy access rack mounting in a suitable cabinet. Default control is via local controls on the front of the power supply, however, the power supply can also operate in remote mode via RS232 or RS485. The monitoring system uses intelligent PC based software based on VB visual interface. The entire monitoring system can realise operational control of the Sirius Range of power supplies. Please contact us to discuss your requirements.
| Input Voltage | 220VAC±10% |
|---|---|
| Input Frequency | 50Hz to 60Hz |
| Output Voltage DC | 30kV, 40kV, 50kV, 60kV |
| Output Power | 30W, 60W & 100W |
| Polarity | Positive or Negative |
| Output Adjustable Range | Near 0V to 100% Voltage |
| Load Regulation | < 0.5% |
| Line Regulation | < 0.5% |
| Stability | < 0.1% |
| Operating Temperature | '-10°C to +40°C |
| Operating Humidity | < 80% non-condensing |
| Control | Local, Local and Remote, Remote |
| Monitoring | Local and Remote |
| Protection | Arcing, Over-Current, Short Circuit |

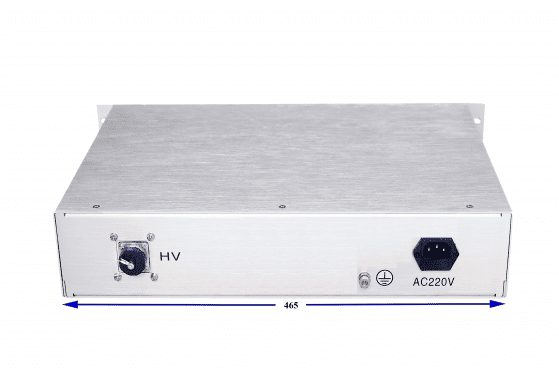

| Dimension | 483*88*330mm |
Overload and short-circuit: When one of these conditions occur the output will current limit (0.5mA).
Spark or arcing: In the event of a spark or arcing, the unit will be tripped for short time and restart again automatically
Our expert team can help you with any questions you may have about this product. Complete the form for a call back or call us during office hours.
